1.2083 420 4Cr13 Plastic mould steel / Stainless steel
Main Products: 1.2083, 420, 4Cr13.
| 1.2083 SUS420J2 4Cr13 Supply Situation | ||

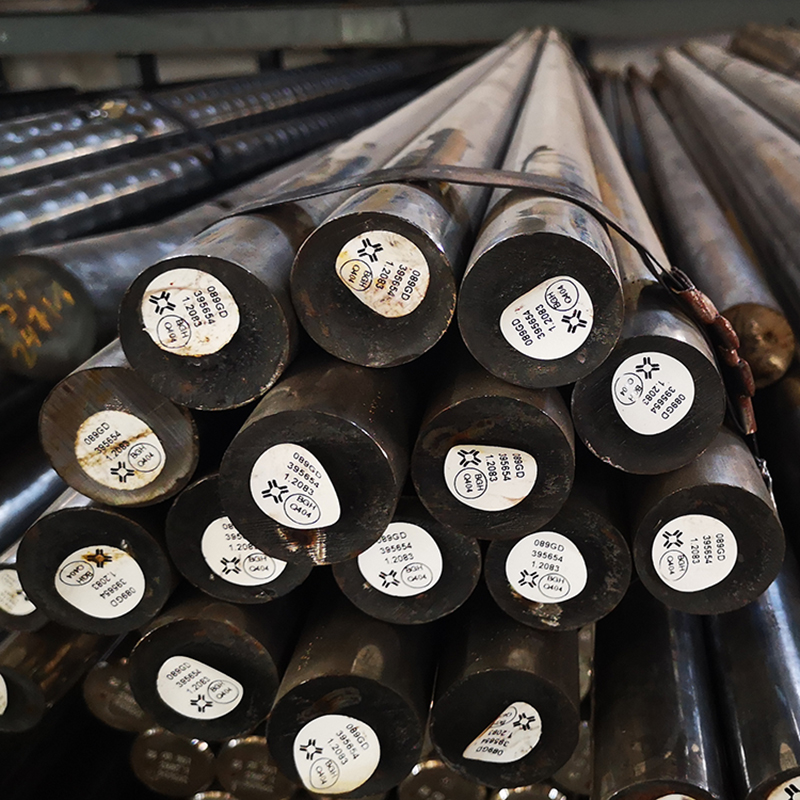

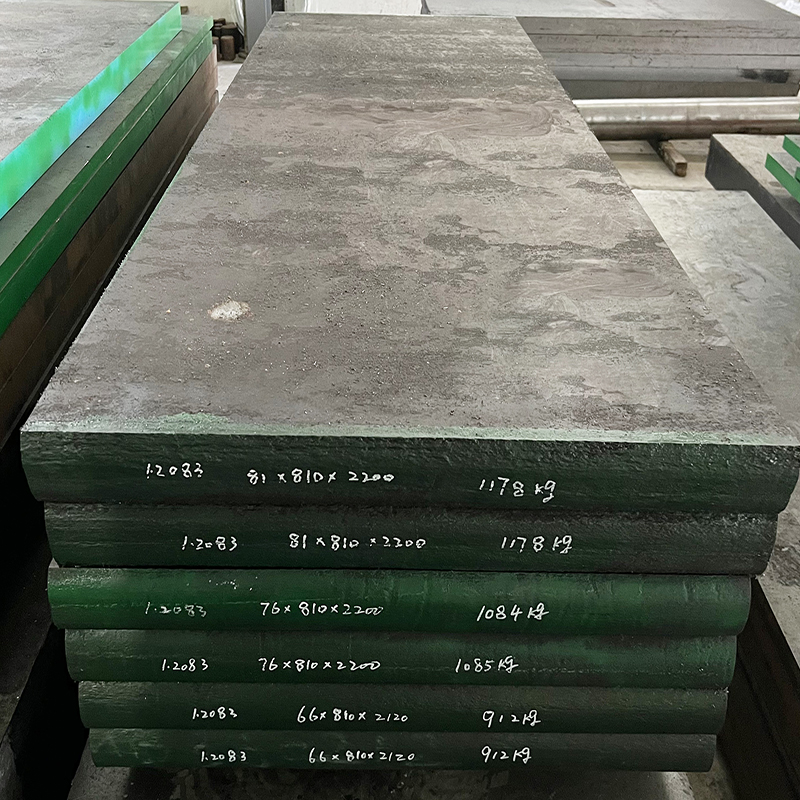

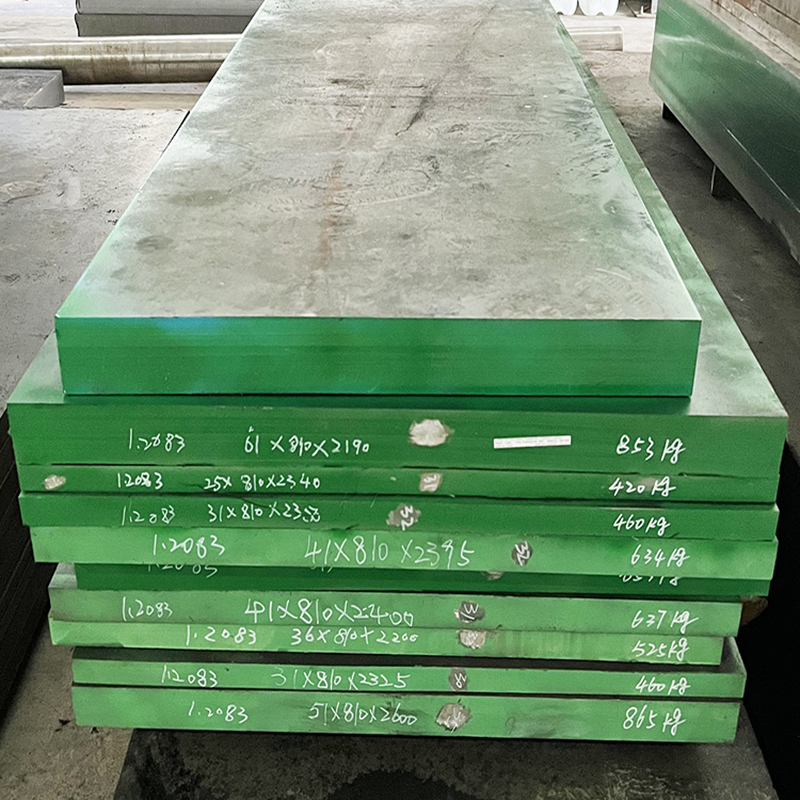

| Flat Bar | Round bar | |
| Thickness/ Dia | 10 – 300mm | 12 – 500mm |
| Surface | Black Surface / Milling or machined surface | Black Surface / Turned surface |
| Delivery Condition | Hot Rolled / Hot Forged; EAF/ ESR； Annealed or Q+T 30- 36HRC | Hot Rolled / Hot Forged; EAF/ ESR； Annealed or Q+T 30- 36HRC |
Products
Related Products

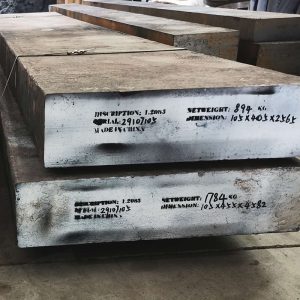

1.2085 420FM X33CrS16

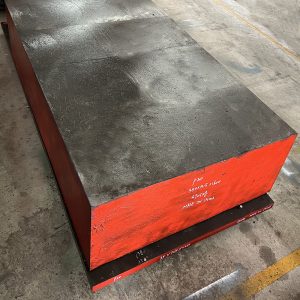

1.2311 P20 3Cr2Mo

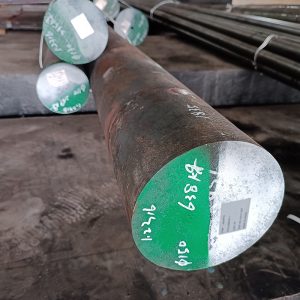

1.2316 AISI 422 X38CrMo16

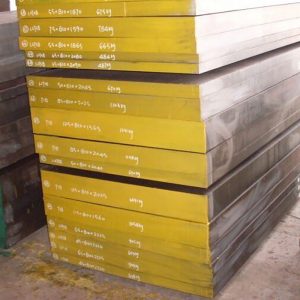

1.2738 P20+Ni 3Cr2NiMnMo

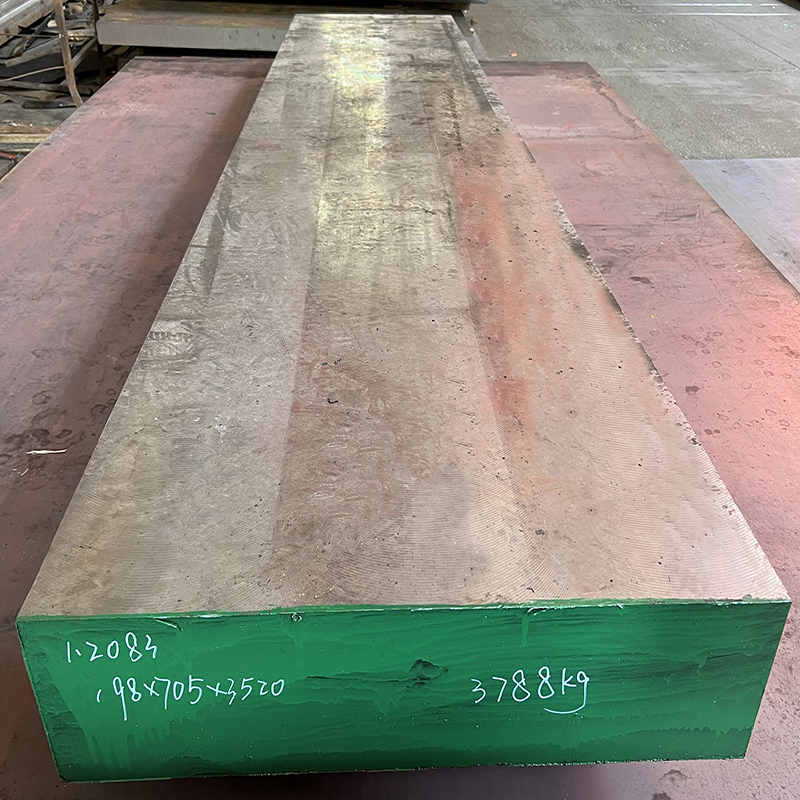

1.2083 SUS420J2 4Cr13 Plastic Mould Steel
1.2083 mould steel with good corrosion resistance properties to against water, steam. As the one of the stainless steel, 1.2083 plastic mould plates suitable to make mould for chemically aggressive plastics, because of excellent mirror polishing properties, it is also suitable for automotive, medical and ptical products.
1.2083 stainless steel generally have two supplied situation:
annealed condition with a hardness < 230HB or quenched and tempered to 30 – 36HRC hardness
1.2083 International Standard:
| DIN | JIS | GB | CHINA | SS |
| 1.2083 | SUS420J2 | 420 | 4Cr13 | S136 |
1.2083 Chemical Composition(%):
| C | Si | Mn | S | Cr | Mo | V |
| 0.35-0.45 | ≤0.60 | ≤0.80 | ≤0.03 | 12.5-14.0 | ≤0.60 | ≤0.20 |
1.2083 Available Size(mm) :
| Flat Bar Size(mm) | Round Bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 10-300 | 205-2200 | 1600-5800 | 12-500 | 2000-6000 |
1.2083 Delivery Condition:
Black Surface / Milling Surface / Turning Surface
Hot Rolled / Forged ；EAF / ESR ; Annealed or Q+T 30- 36HRC
1.2083 Delivery Time:
The stock 1.2083 sizes will be delivered within 10 days.
The customized, will be about 30-35 days.
