1.2311 P20 3Cr2Mo Plastic mold tool steel
Main Products: 1.2311, P20, 3Cr2Mo.

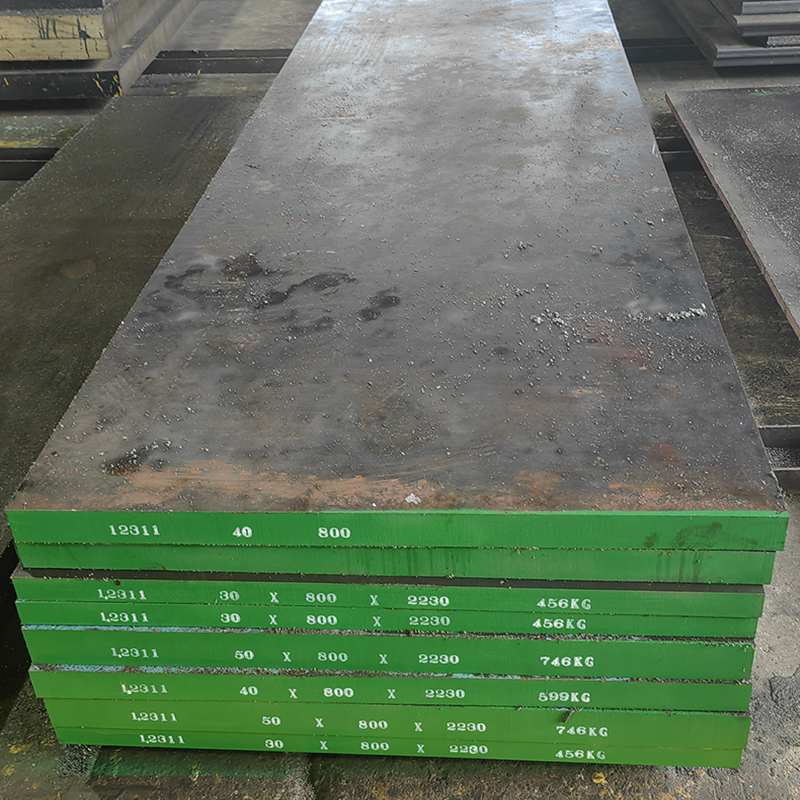

| Shape | 1.2311 Flat Bar / Plate |
| Thickness | 10 – 800mm |
| Surface | black surface 1 side milling surface 2 sides milling surface |
| Delivery Condition | Hot Rolled / Hot Forged ; 2 sides cutting / 4 sides cutting Pre Hardened 28 – 36HRC |
Products
Related Products
1.2083 420 4Cr13
1.2085 420FM X33CrS16
1.2316 AISI 422 X38CrMo16
1.2738 P20+Ni 3Cr2NiMnMo
1.2311 P20 3Cr2Mo ALLOY TOOL STEEL
DIN 1.2311 grade is one kind of alloyed, hardened and tempered condition tool steel, widely used in the field of molds, like die holders, casting dies, extrusion dies, mould frame, injection mold, backers for plastic mould.
DIN 1.2311 alloy steel plates with excellent hardening penetration, thickness could up to 800mm. P20 usually supply in Pre hardened 28 – 36HRC condition with high mirror polish ability, fantastic weldability and good machine ability.
1.2311 Tool Steel International Standard:
| DIN | GB | CHINA |
| 1.2311 | P20 | 3Cr2Mo |
1.2311 TOOL STEEL CHEMICAL COMPOSITION
| 1.2311 Chemical composition(%) | ||||||
| C | Si | Mn | P | S | Cr | Mo |
| 0.35-0.45 | 0.20-0.80 | 1.30-1.60 | ≤0.030 | ≤0.030 | 1.40-2.00 | 0.13-0.55 |
1.2311 TOOL STEEL DELIVERY CONDITION
| Delivery Condition of 1.2311/ P20 | |||
| THICKNESS | SURFACE | SIDE | |
| Hot rolled 1.2311 | 10-181MM | black surface | 2 sides /4 sides saw cutting |

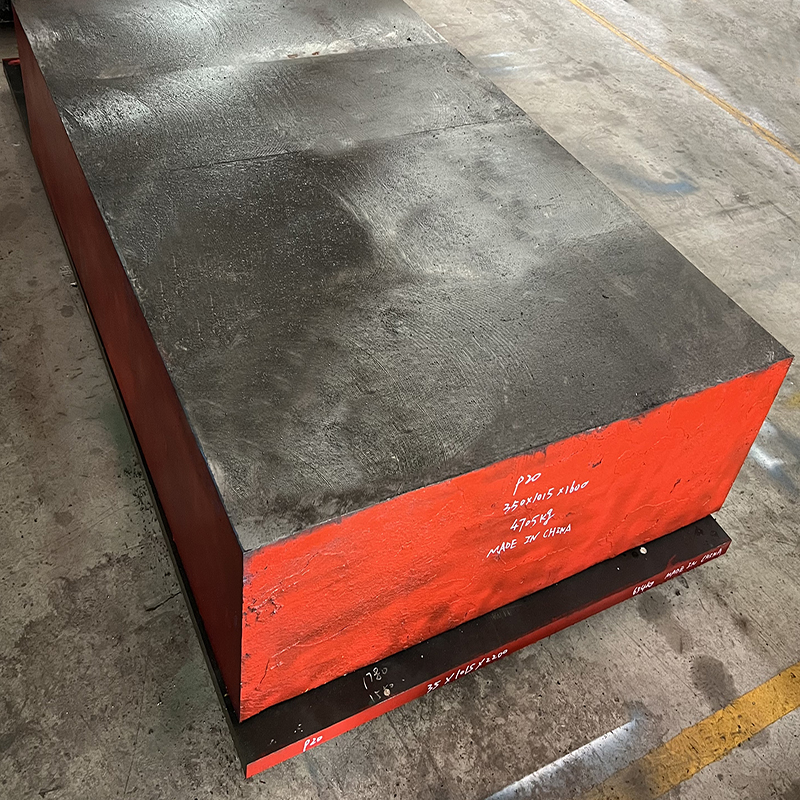

| Hot forged 1.2311 Block | 150 – 800MM | black surface 1 side milling surface 2 sides milling surface | 4 sides flat |
1.2311 TOOL STEEL SERVICE
Custom size service, cutting the 1.2311 die steel plates to flats size
Side Milling service, milling the 1.2311 die steel side as customer demand
Block cutting service, cutting the width/length based on customer
1.2311 flat bar and round bar are available
In addition to the 1.2311 raw material, we have the 1.2311 making mould base too.
1.2311 TOOL STEEL DELIVERY TIME
The stock 1.2311 plates will be delivered within 7-15 days
The customized, will be about 25 – 35 days
