1.2316 AISI 422 X38CrMo16 Plastic mold tool steel
Main Products: 1.2316, AISI 422, X38CrMo16.
| 1.2316 AISI 422 X38CrMo16 Supply Situation | ||
| Flat Bar | Round bar | |
| Thickness/ Dia | 20 – 400mm | 20 – 300mm |
| Surface | Black Surface / Milling or machined surface | Black Surface / Turned surface |
| Delivery Condition | Hot Rolled / Hot Forged ; EAF/ ESR ; Q+T 30- 36HRC | Hot Rolled / Hot Forged ; EAF/ ESR ; Q+T 30- 36HRC |
Products
Related Products
1.2083 420 4Cr13
1.2085 420FM X33CrS16
1.2311 P20 3Cr2Mo
1.2738 P20+Ni 3Cr2NiMnMo
1.2316 AISI 422 X38CrMo16 Alloy Tool Steel
DIN 1.2316 stainless steel is a chrome-molybdenum alloy tool steel with excellent corrosion resistance properties. It is usually supplied with pre hardened 33 – 38HRC condition.
This steel variant good polishability, toughness, high-alloy and wear-resistant properties. and It is widely favored for tools designed to process chemically aggressive plastic materials, such as PVC.
1.2316 Tool Steel International Standard
| DIN | AISI | CHINA |
| 1.2316 | 422 | X38CrMo16 |
1.2316 Tool Steel Chemical Composition
| Grade | C% | Si% | Mn% | P% | S% | Cr% | Mo% | Ni% |
| 1.2316 | 0.33-0.45 | ≤1.00 | ≤1.50 | ≤0.030 | ≤0.030 | 15.5-17.5 | 0.80-1.30 | ≤1.00 |
1.2316 Tool Steel Available Size
| Flat Bar Size(mm) | Round Bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 20-400 | 1000-1300 | 2000-5800 | 20-300 | 3000-5800 |
1.2316 Tool Steel Delivery Condition
Black Surface / Milling Surface / Turning Surface
Hot Rolled / Forged ; ESR or EAF；Q+T 30 – 36HRC

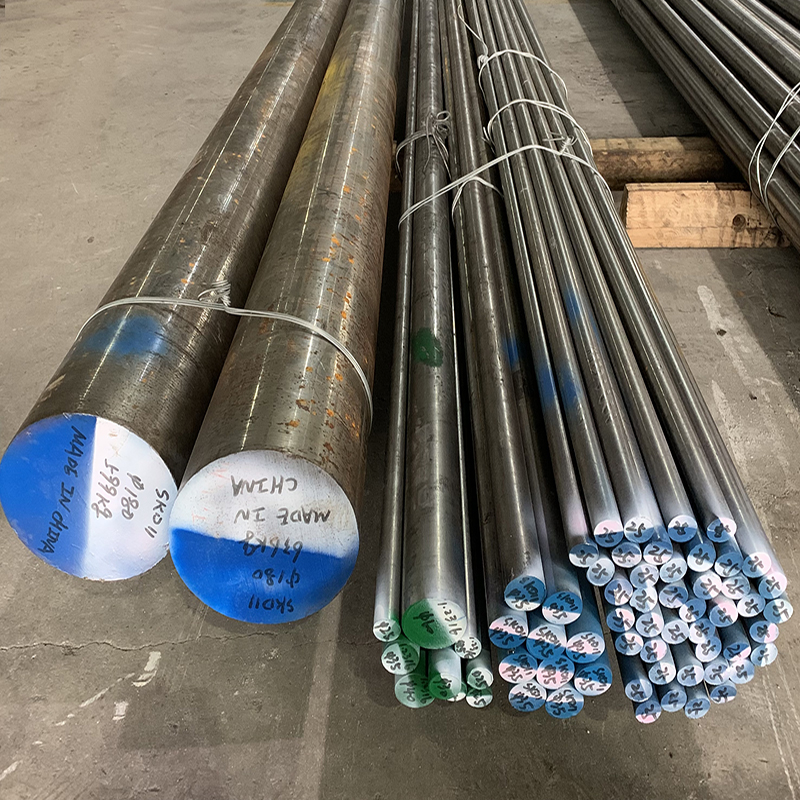

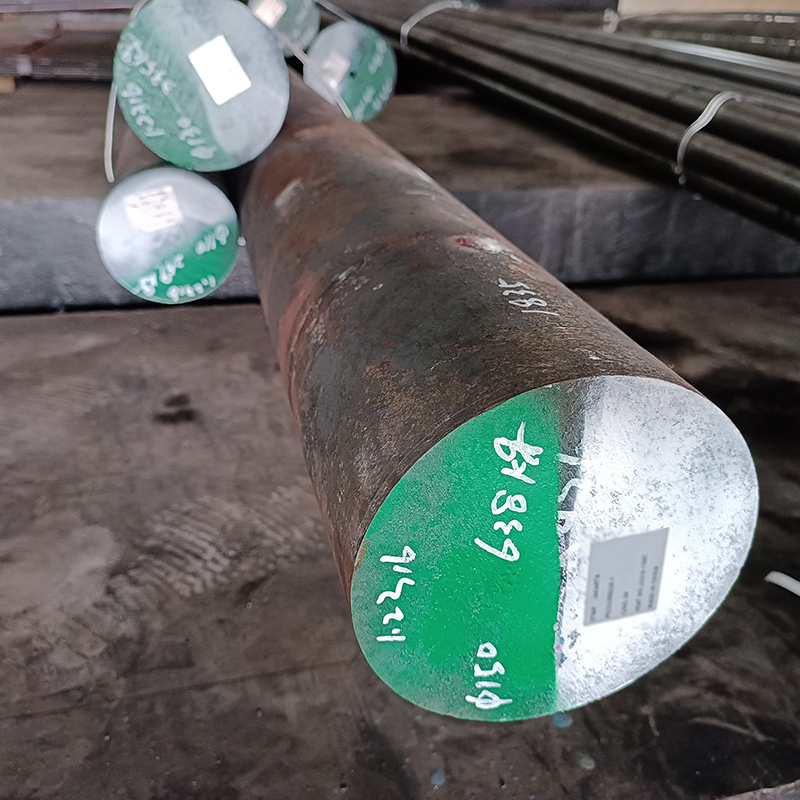

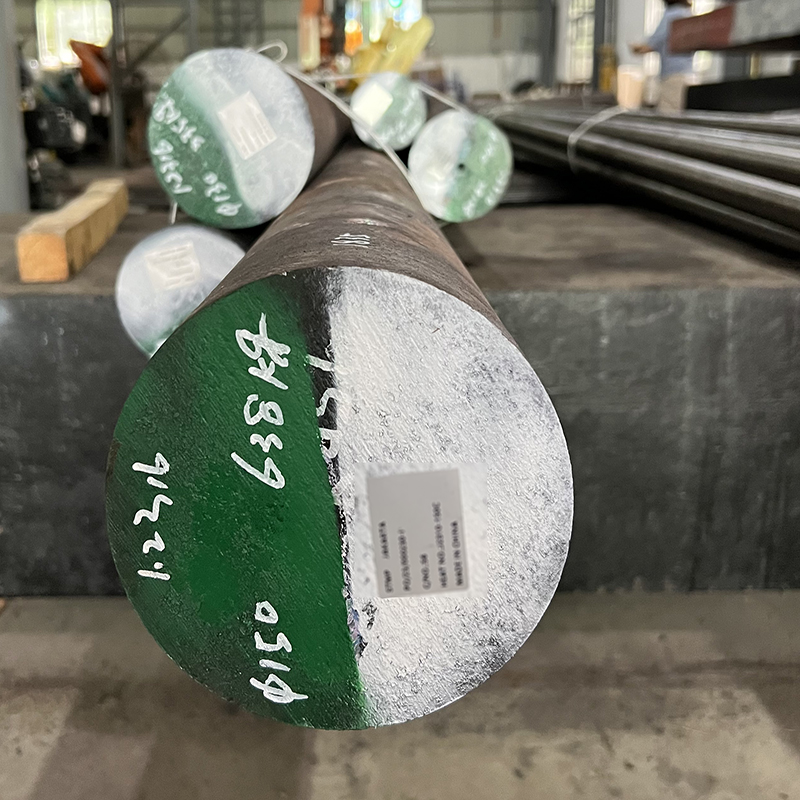

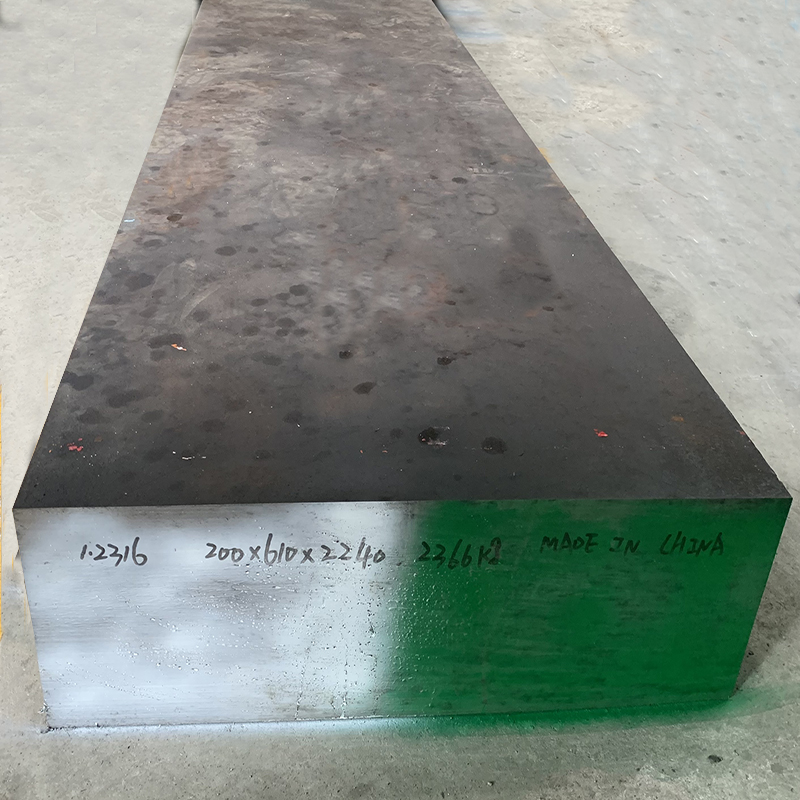

Shape of 1.2316 mold steel: Round Bar / Flat Bar / Plate bar/ Block
1.2316 Tool Steel Delivery time
The stock 1.2316 material will be delivered within 7-15 days
The customized, will be about 25 – 35 days
