D3 Cr12 1.2080 SKD1 Cold Work Tool Steel

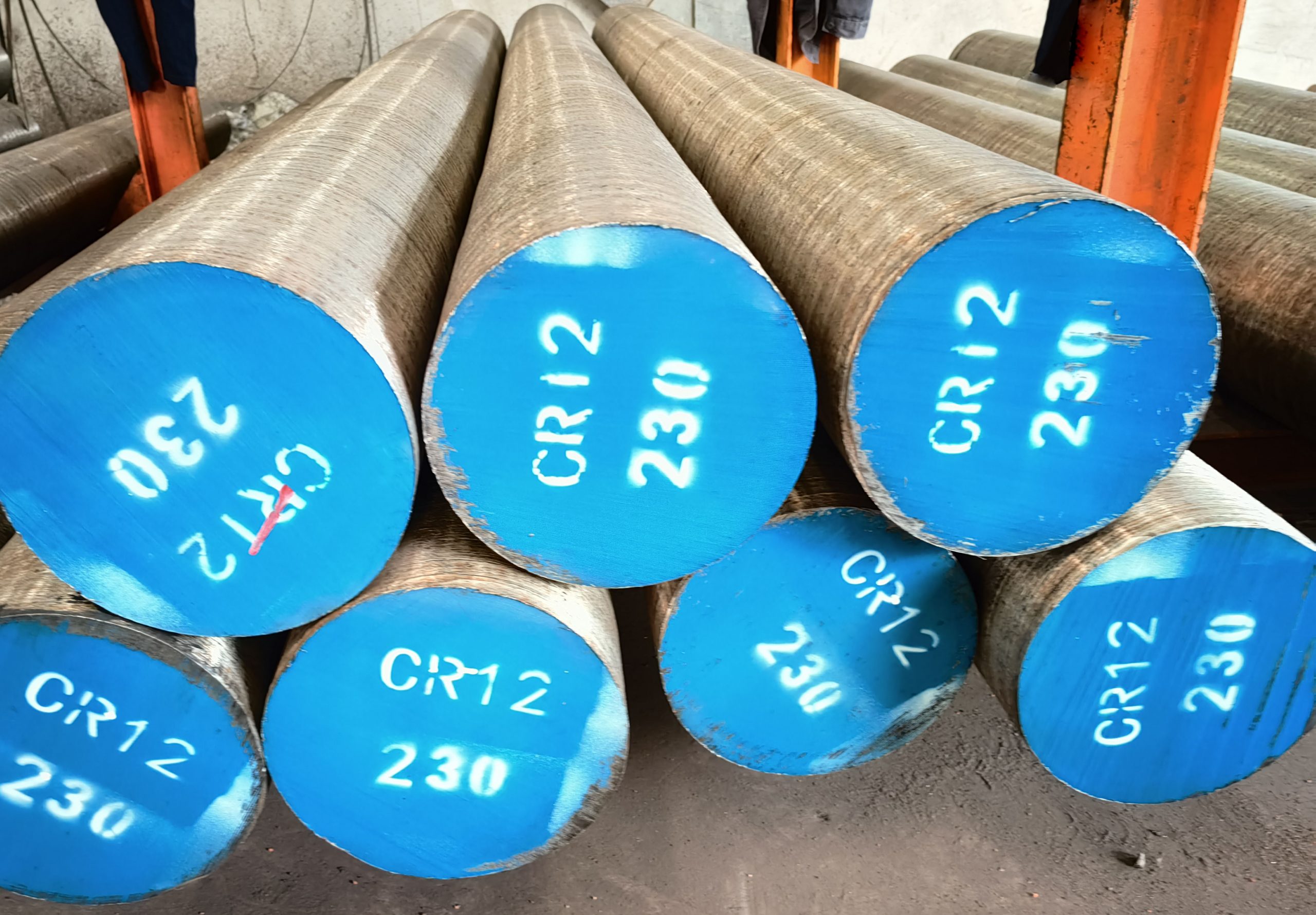

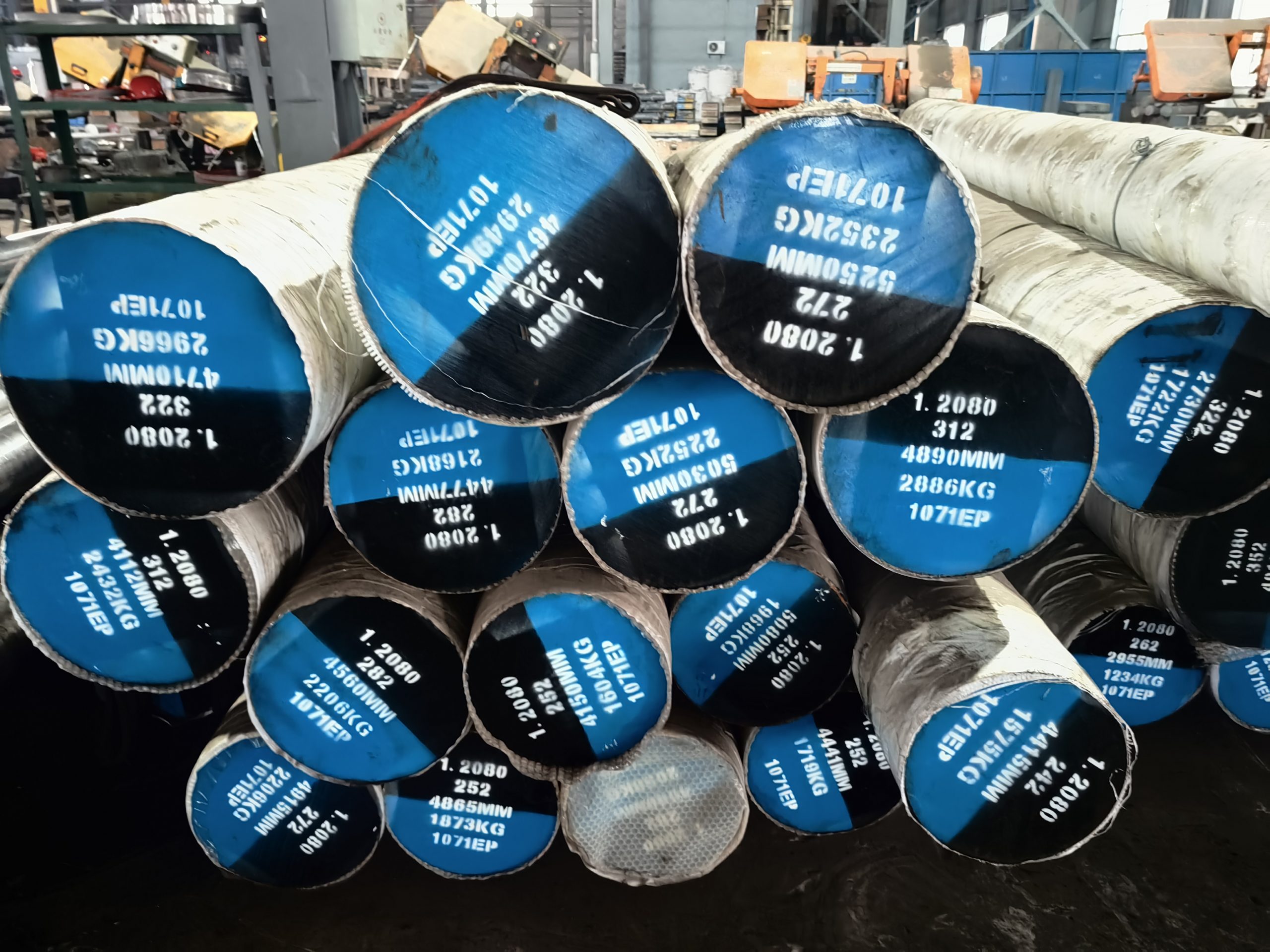

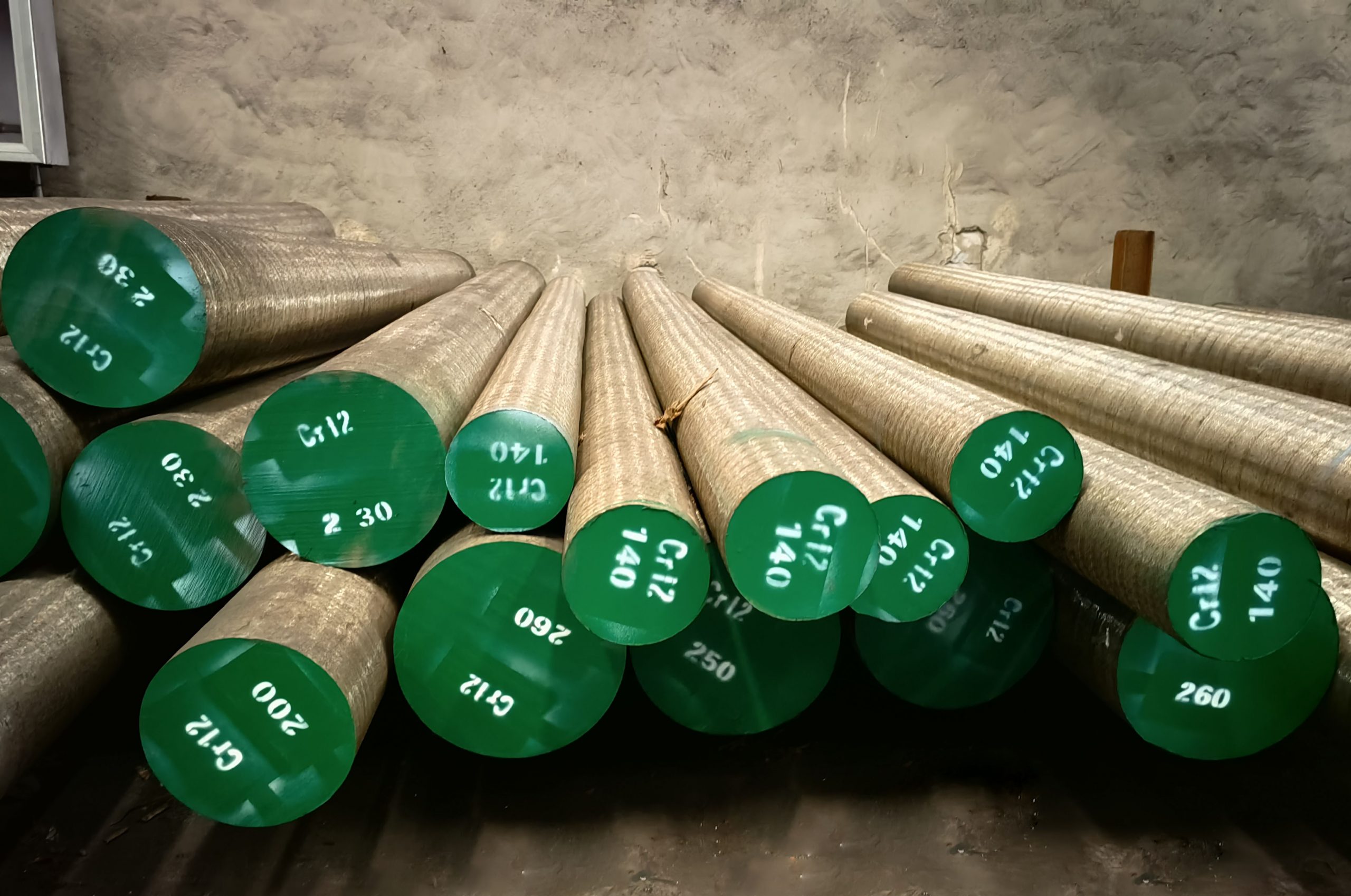

Main Product: 1.2080, 2080, Cr12 Round Bar
| D3 Cr12 1.2080 Supply Situation | ||

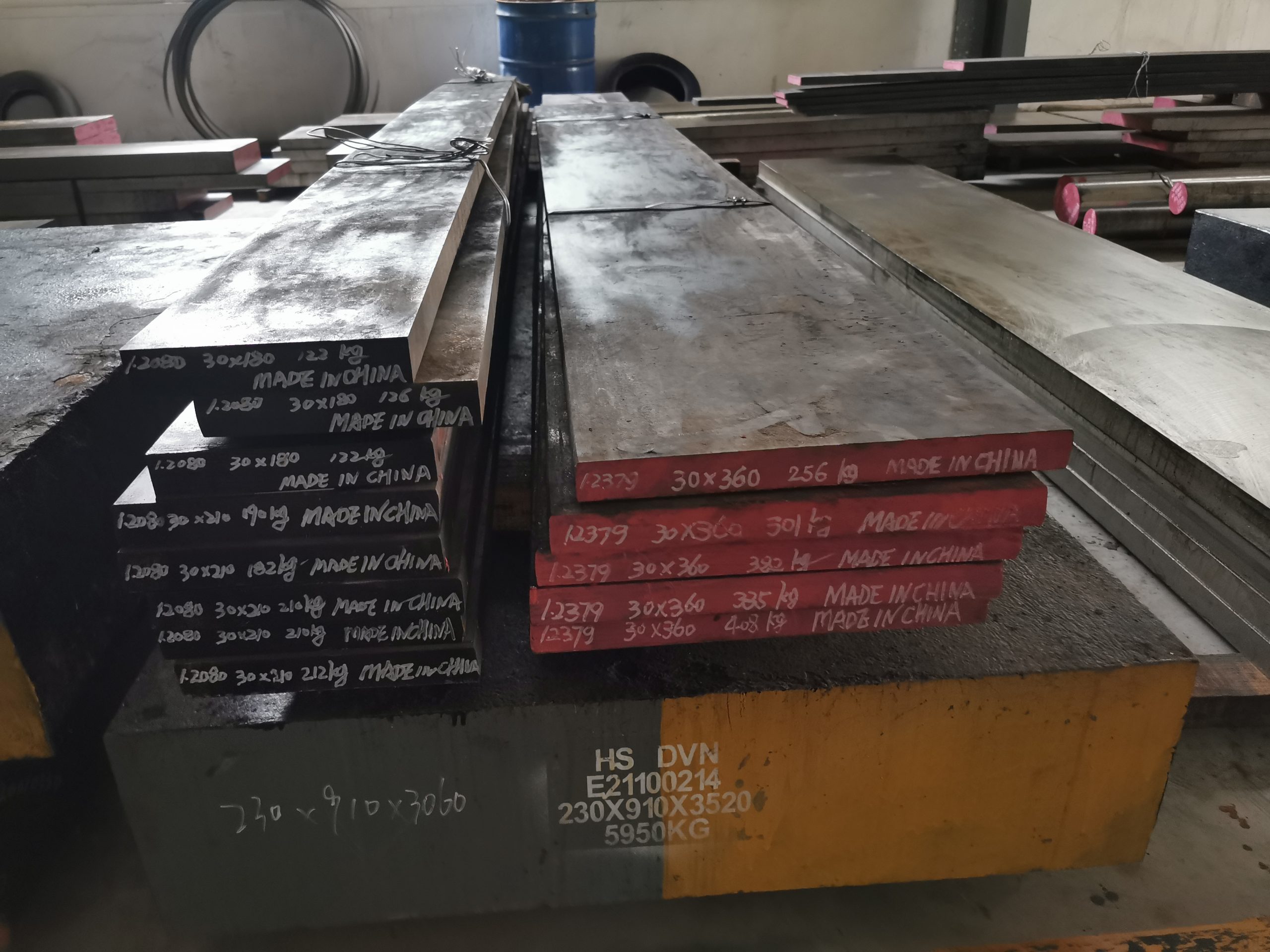

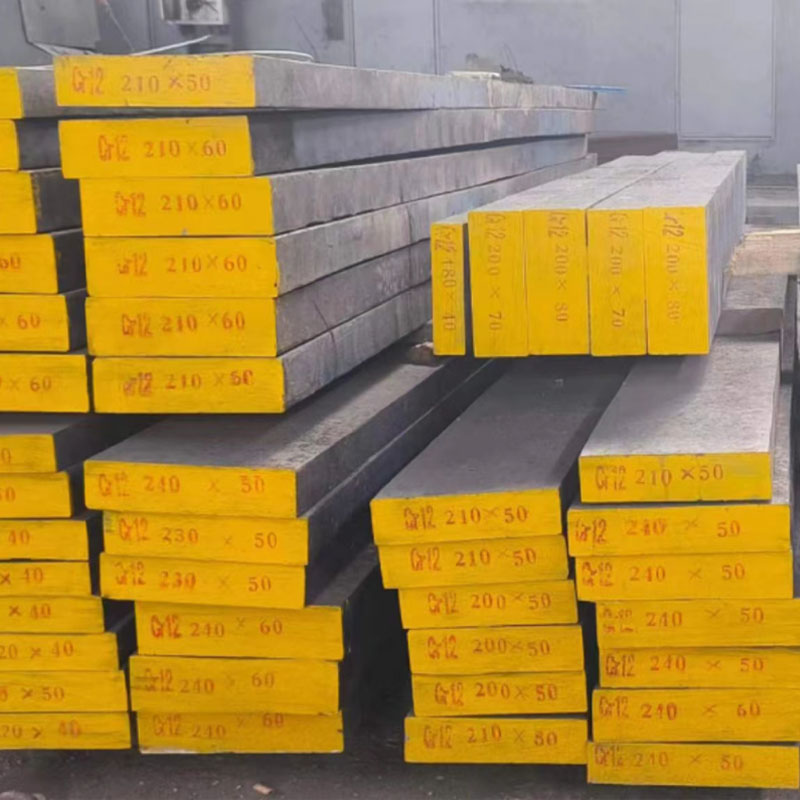

| Flat Bar | Round bar | |
| Thickness/ Dia | 10 – 200mm | 10 – 700mm |
| Surface | Black Surface / Milling or machined surface | Black Surface / Turned surface |
| Delivery Condition | Hot Rolled / Hot Forged ;EAF/ ESR ; Annealed | Hot Rolled / Hot Forged ; EAF/ ESR ; Annealed |
Products
Related Products
Cr12MoV
D2 1.2379 SKD11 Cr12Mo1V1
DC53
O1 1.2510 SKS3 9CrW
D3 Cr12 1.2080 Cold Work Die Steel Tool/Alloy/Special Steel
D3 Cr12 1.2080 Cold Work Die Steel is a kind of cold work tool steel widely used, belonging to Ledeburitic steel with high carbon and high chromium. Quite good hardenability and wearing resistance, and small distortion after quenching. Not good impact toughness, be liable to fracture and form inhomogeneous eutectic carbides..
D3 Cr12 1.2080 Tool Steel International Standard:
| GB | DIN | ASIA | JIS |
| Cr12 | X210Cr12 | D3 | – |
D3 Cr12 1.2080 Alloy Steel Chemical Composition(Wt%)
| C | Si | Mn | P | S | Cr |
| 2.0-2.3 | ≤0.40 | ≤0.40 | ≤0.03 | ≤0.03 | 11.5-13.0 |
D3 Cr12 1.2080 Alloy Tool Steel Available Size(mm)
| Flat Bar Size | Round Bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 10-200 | 155-810 | 2000-6000 | 10-700 | 3000-6000 |
D3 Cr12 1.2080 Flat Bar Round Bar Delivery Condition
Black Surface / Milling Surface / Turning Surface
Hot Rolled / Forged; EFA / ESR; Annealed
D3 Cr12 1.2080 Steel Delivery Time
Stock: within 10-15 days.
Future goods: 30-35 days.
