Location: Home > Products > Alloy Mechanical Steel > SAE52100 EN31 GCr15
SAE52100 EN31 GCr15 Mechanical Alloy Steel
Main Products: SAE52100, EN31, GCr15.
| SAE52100 EN31 GCr15 1.3503 SUJ2 Supply Situation | ||
| Flat Bar | Round bar | |
| Thickness/ Dia | 10 – 300mm | 16 – 300mm |
| Surface | Black Surface | Black Surface |
| Delivery Condition | Hot Rolled / Hot Forged ; Annealed / Q+T ; Two cutting side / Four Cutting Side | Hot Rolled / Hot Forged ; Annealed / Q+T ; |
Products
Related Products
SAE4140 1.7225 SCM440 42CrMo
SAE4340 1.6511 SNCM439 40CrNiMo
SAE5140 1.7035 SCr440 40Cr

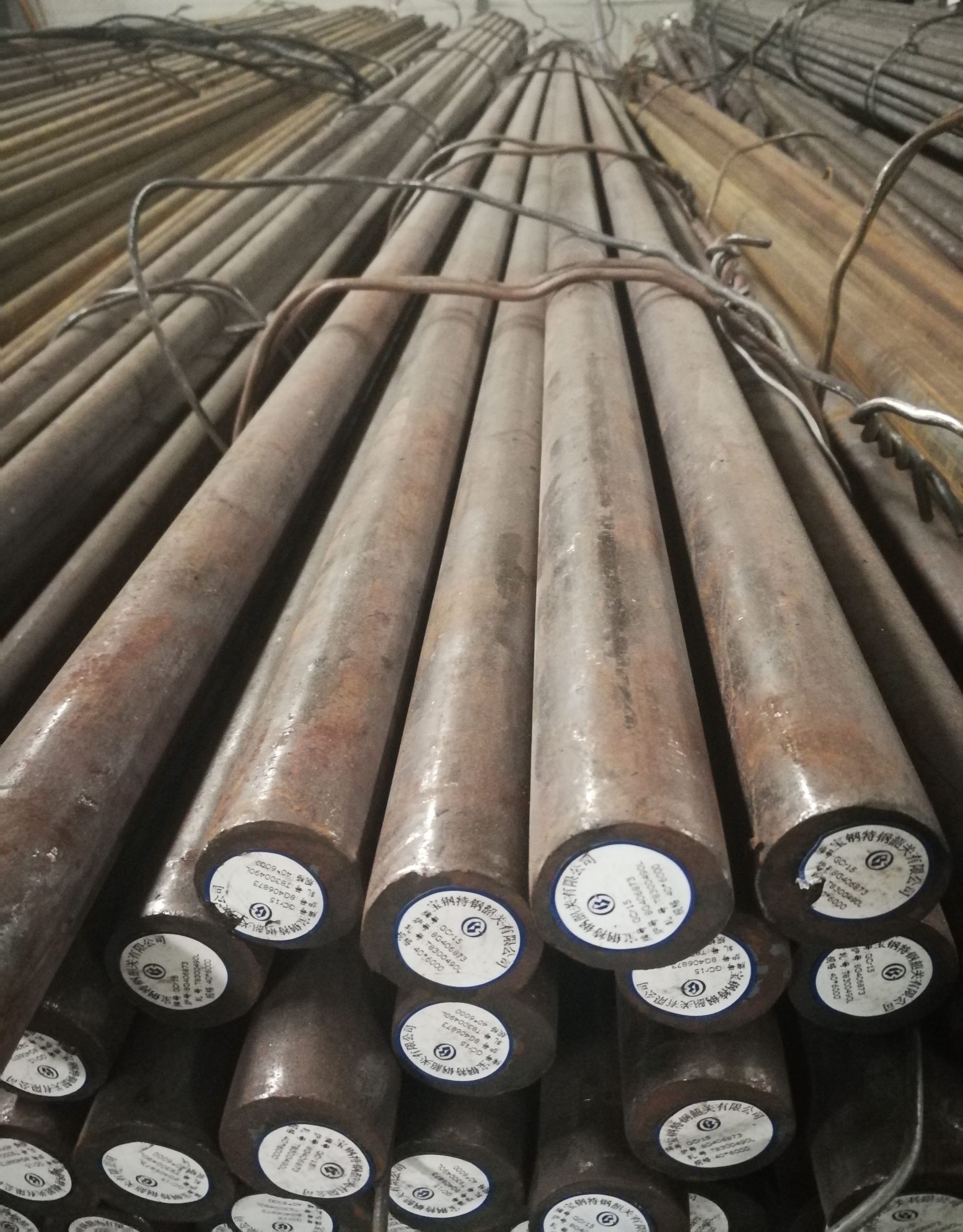

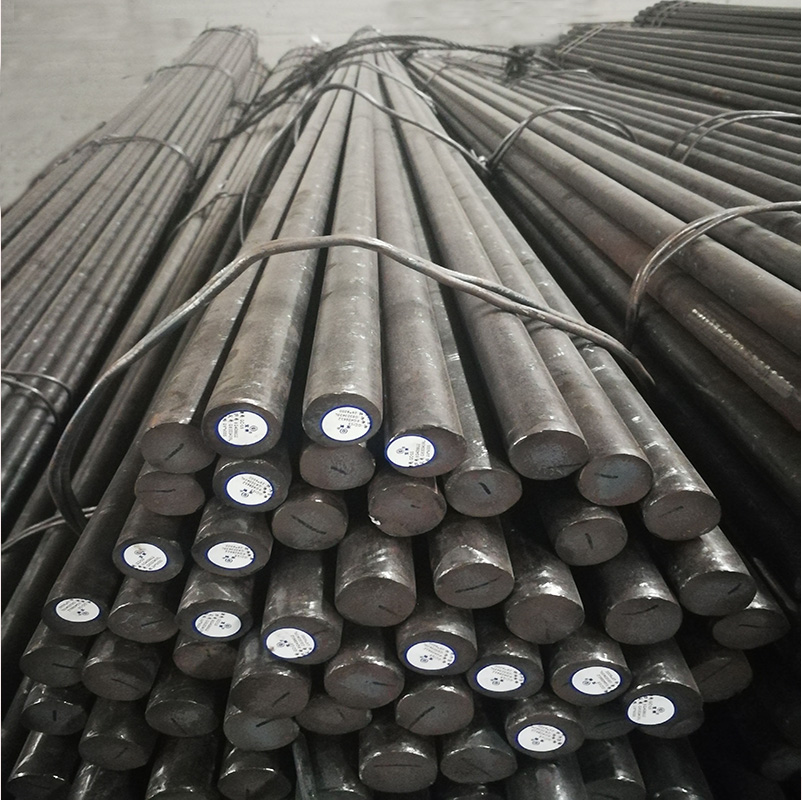

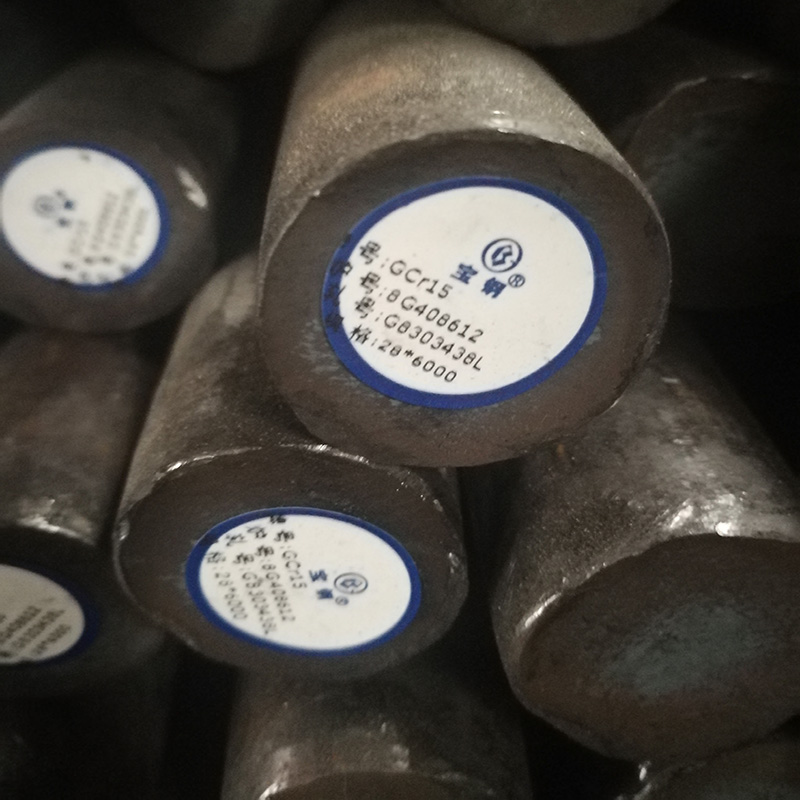

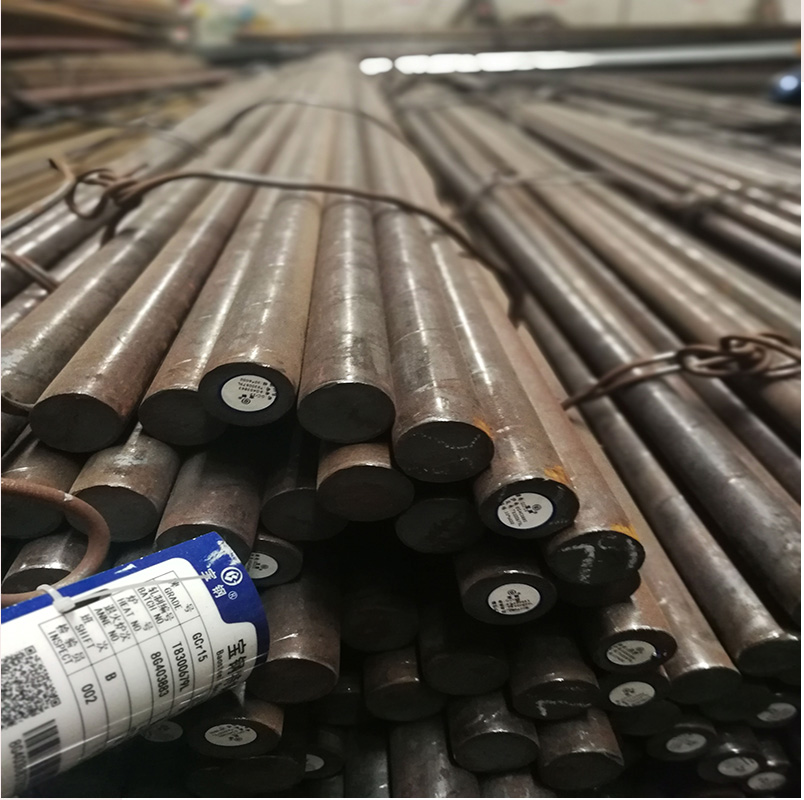

SAE52100 EN31 GCr15 1.3503 SUJ2 Hot Rolled Alloy Structural Steel
GCr15 alloy structural steel is GB standard steel, It belongs to the high-quality high carbon, alloy chromium, manganese steel.
GCr15 properties is a chromium, manganese alloy steel specification.
GCr15 is equivalent to AISI 52100, DIN 100Cr6. Most applications can replace each other.
GCr15 for high demand large-sized or medium-sized precision plastic mold and alloy parts.
GCr15 International Standard:
| GB | JIS | AISI | DIN |
| GCr15 | SUJ2 | SAE52100 | 100Cr6/EN31 |
GCr15 Chemical composition(%)
| C | Si | Mn | Cr | Mo | P | S | Ni |
| 0.95-1.05 | 0.15-0.35 | 0.2-0.4 | 1.3-1.65 | ≤0.10 | ≤0.027 | ≤0.02 | ≤0.03 |
GCr15 Available Size(mm) :
| Flat Bar Size(mm) | Round Bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 10-300 | 210-1300 | 2000-2300 | 16-300 | 3000-6000 |
GCr15 Delivery Condition:
Black Surface
Hot Rolled / Forged ; Two cutting side / Four Cutting Side
GCr15 Delivery Time:
The stock GCr15 sizes will be delivered within 10-15 days.
The customized, will be about 30-35 days.
